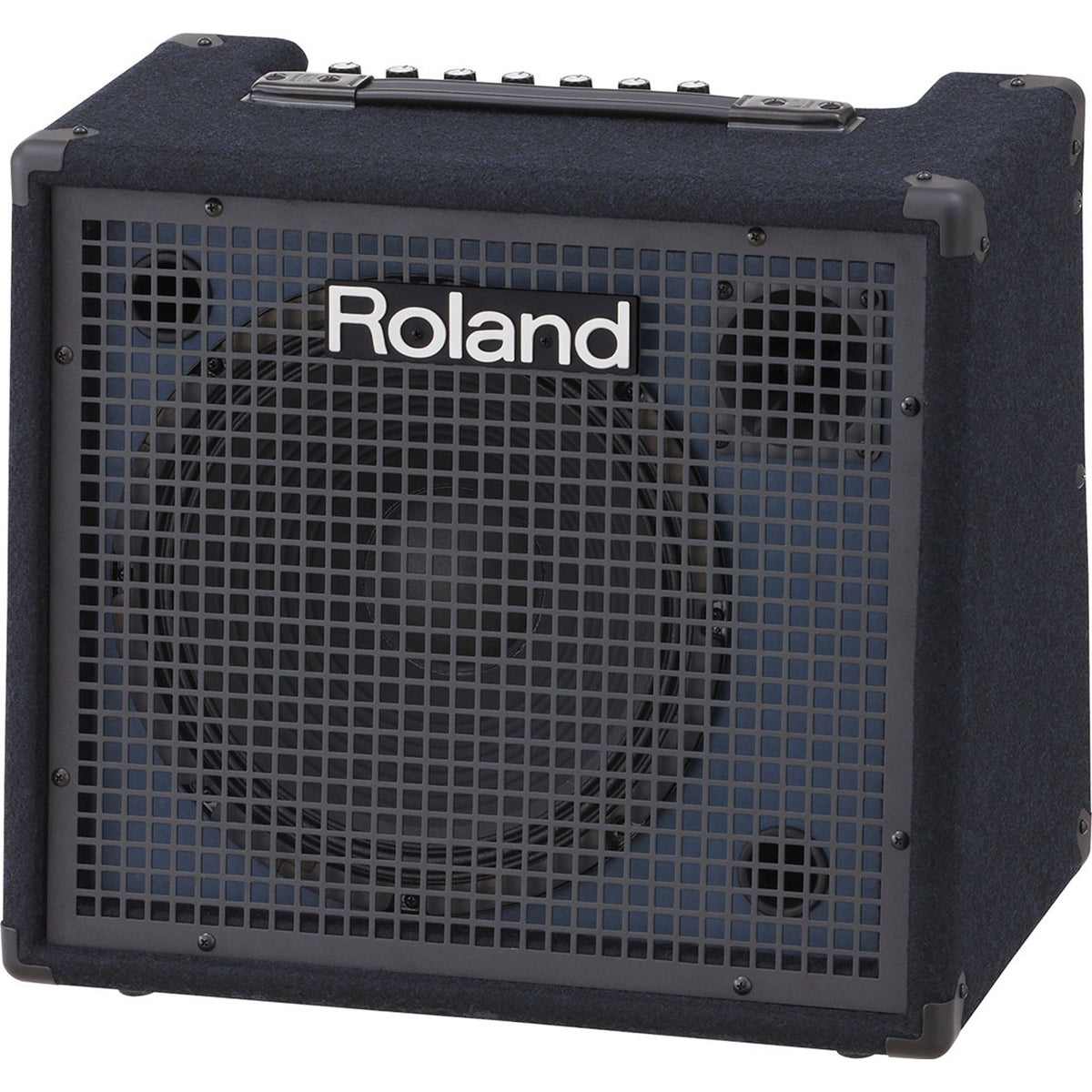

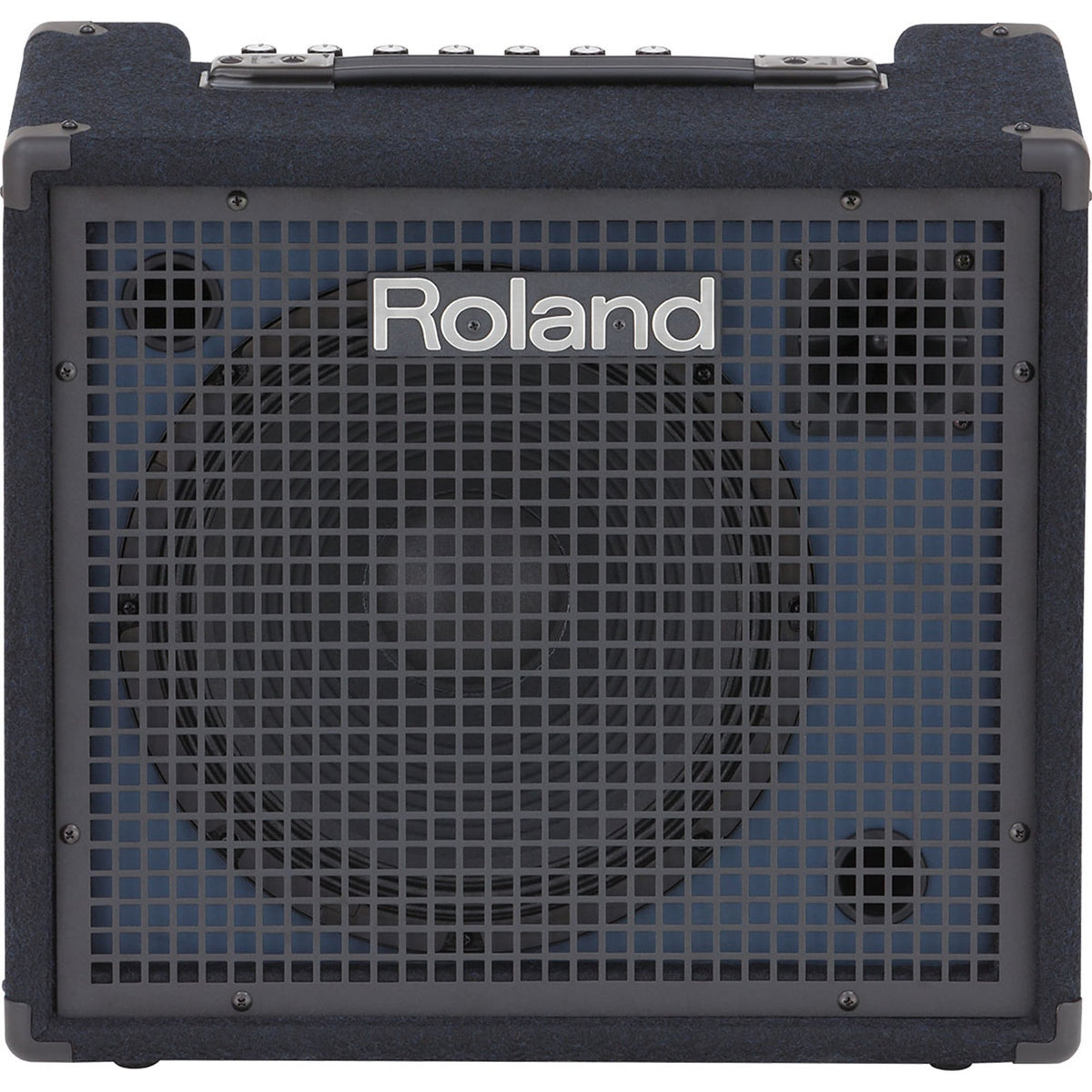

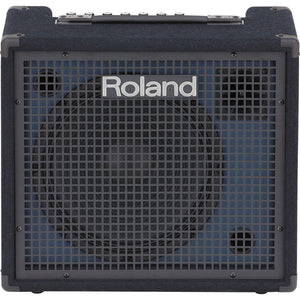

Roland KC200 4-Ch Mixing Keyboard Amplifier

Full-Range Sound for Keyboards and Electronic Musical Instruments

The KC-200 offers full-range audio reproduction in a compact amp with 100 watts of power. The cabinet features Roland’s patented twin bass-reflex design, providing extended low-frequency response without distortion. Paired with the newly redesigned power section and updated 12-inch woofer, the KC-200 delivers even better bass performance for amplifying 88-note stage pianos, organs, and synthesizers, plus rhythm machines and other electronic instruments.

Onboard 4+1 Mixing

The KC-200’s four 1/4-inch line input channels support keyboards, drum machines, and various electronic instruments. There’s also an auxiliary channel with 1/8-inch and RCA inputs for connecting smartphones, music players, or other devices. Channel 1 includes an XLR input too, letting you plug in a vocal mic for even more versatility. Channel 4 is dedicated to monitoring through the KC-200’s onboard speakers and headphones jack; this allows you to monitor click or guide tracks while performing without sending the sound to a PA via the amp’s line out jack.

Versatile Connectivity for Performing, Recording, and Practice

With its easy-access connectivity, the KC-200 integrates into any playing environment. A 1/4-inch line output enables you to interface with PA systems, stage monitors, and recording devices. There’s also a Sub Out jack for connecting to a powered subwoofer, with level conveniently tied to the amp’s master volume for one-touch control. Plugging into the Phones jack mutes the onboard speakers and Sub Out, perfect for private practice sessions and checking sounds on stage with headphones.

Features
Flagship stereo keyboard amplifier with 320 watts of power
Onboard mixer with four stereo input channels, stereo auxiliary input, and master EQ
Two newly developed custom 12-inch woofers and two custom horn tweeters
Built-in effects: reverb, chorus, tremolo, and rotary
Control rotary speed and effects on/off with optional external footswitches
Flexible I/O with XLR mic input, stereo XLR and ¼-inch line outputs, headphones output, and more
Stereo Link function for chaining two KC-990s
Metal jacks for increased durability
Casters and side-mounted handles for enhanced mobility

Size and Weight

Width

480 mm
18-15/16 inches

Depth

295 mm
11-5/8 inches

Height

435 mm
17-1/8 inches

Weight

15 kg
33 lbs 2 oz

Specs

Rated Power Output

100 W

Nominal Input Level (1 kHz)

CH1 (XLR type, MIC/LINE): -50-- -20 dBu
CH2 (LINE): -20 dBu
CH3 (LINE): -20 dBu
CH4 (MONITOR): -20 dBu
AUX IN (L, R, STEREO): -10 dBu

Nominal Output Level (1 kHz)

LINE OUT: +4 dBu
SUB OUT: +4 dBu

Speakers

30 cm (12 inches) Woofer x 1
Tweeter x 1

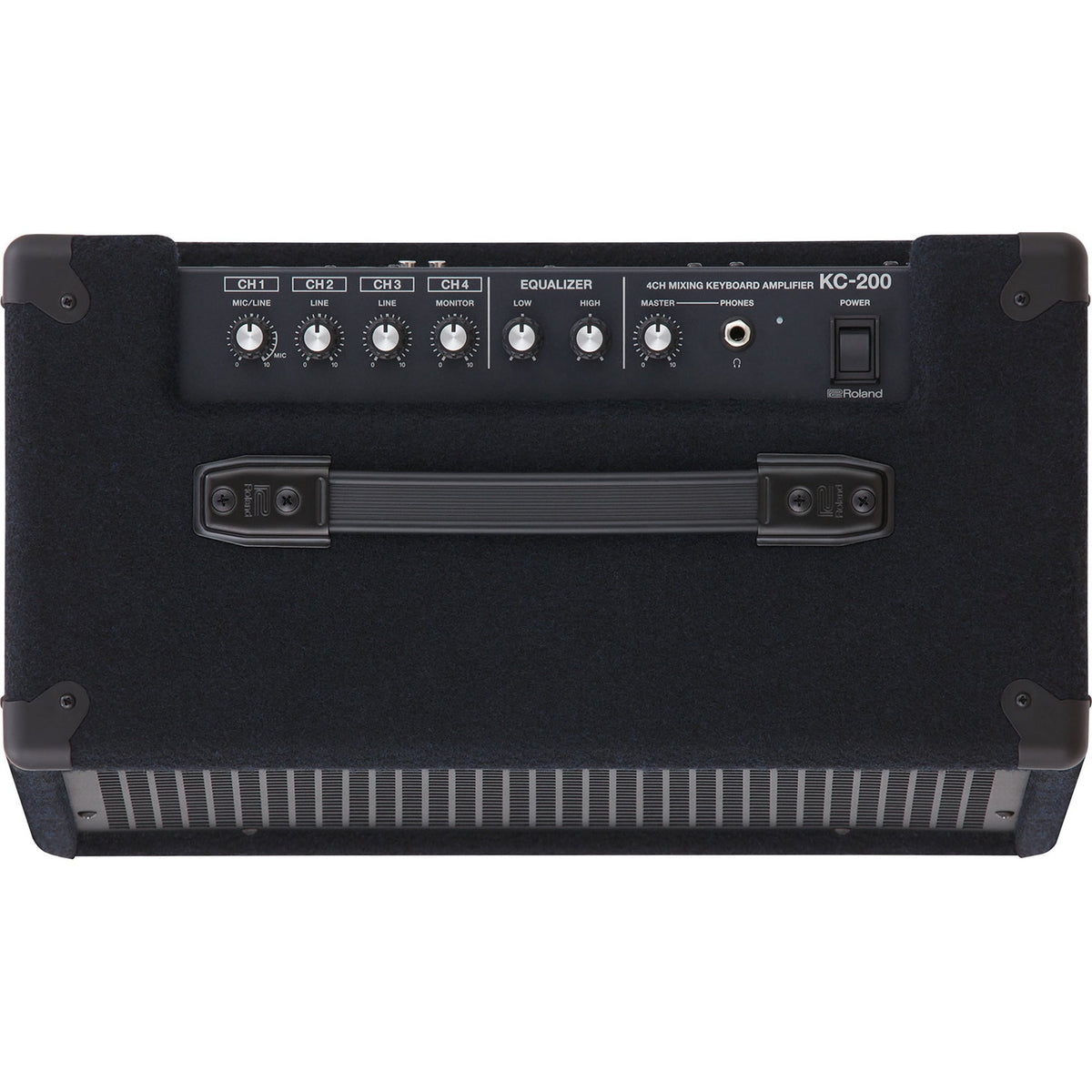

Controls

POWER switch
[CH1]
MIC/LINE knob
[CH2]
LINE knob
[CH3]
LINE knob
[CH4]
MONITOR knob
[EQUALIZER]
LOW knob
HIGH knob
MASTER knob

Indicator

Power

Connectors

CH1 jack: XLR type
CH1 (MIC/LINE) jack: 1/4-inch phone type
CH2 (LINE) jack: 1/4-inch phone type
CH3 (LINE) jack: 1/4-inch phone type
CH4 (MONITOR) jack: 1/4-inch phone type
AUX IN (L, R) jacks: RCA phono type
AUX IN (STEREO) jacks: Stereo miniature phone type
LINE OUT jack: 1/4-inch phone type
SUB OUT jack: 1/4-inch phone type
PHONES jack: 1/4-inch TRS phone type (mono signal output)

Power Consumption

70 W

Accessory

Owner's Manual

Option (sold separately)

Speaker stand: ST-A95
